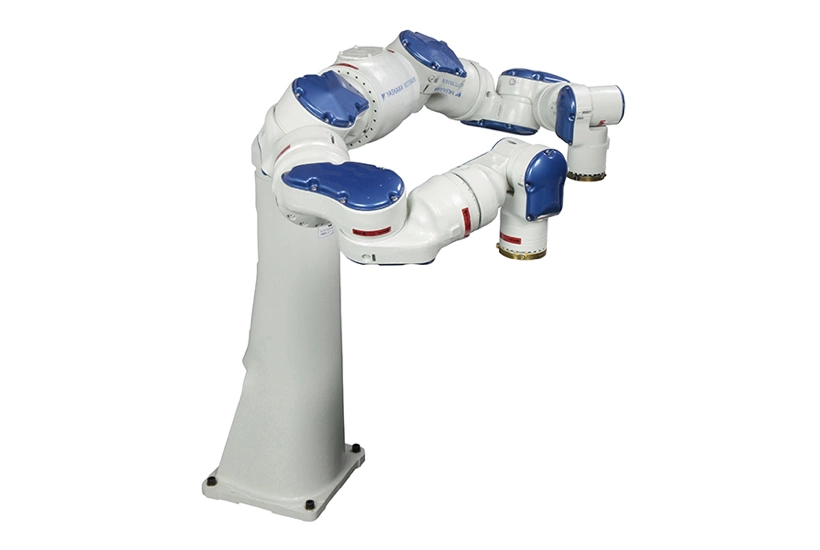

Two-Arm Robot
The SDA5D is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms.
Contact form| Controlled Axes | 15 |
| Payload | 5 kg |
| Max Working Range | 845 mm |
| Repeatability | 0.06 mm |
| Weight | 110 kg |
| Power Supply | 2.0 KVA |
| S Axis | 200 º/sec |
| L Axis | 200 º/sec |
| U Axis | 200 º/sec |
| R Axis | 200 º/sec |
| B Axis | 230 º/sec |
| T Axis | 350 º/sec |
